Wood insert with oven

Very spacious combustion chamber lined with steel and Thermic to improve its performance and energy efficiency. Maximum control in combustion, allows the optimal regulation of primary and secondary air. Includes grill. Optional 360 m3 / h ventilation system by means of two two-speed fans and safety thermostat.

Finish Options:
Manual See PDF
Datasheet:
Type of fuel Wood
Heating Method Heat accumulation and natural convection
Efficiency 83.9%
Net powerl 10kw
Output Smoke 180mm
Location of smoke outlet Superior

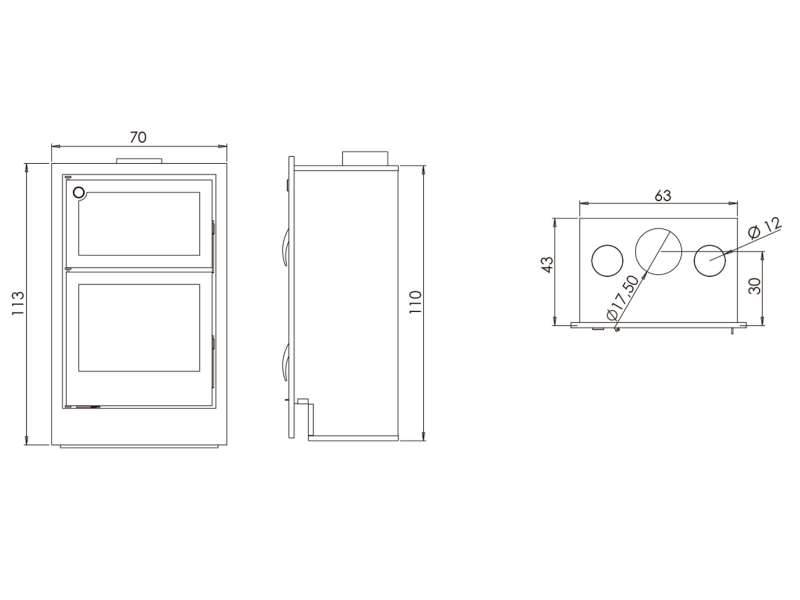

Measures (LarxProfxAlt) 700x430x1130
Weight 150kg
